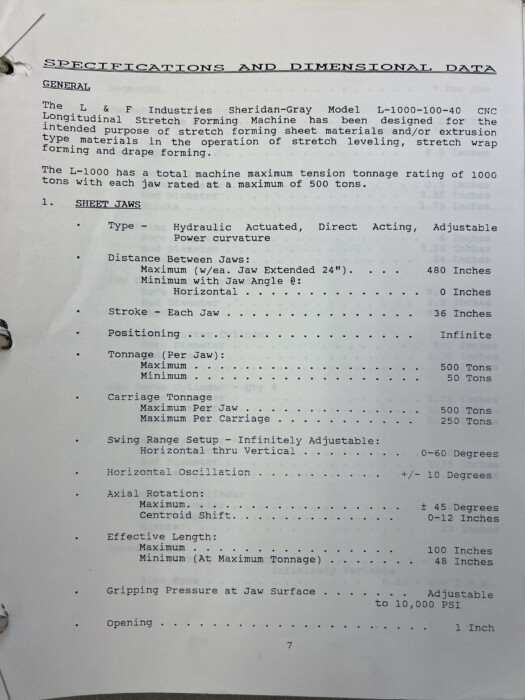

| Distance Between Jaws | 0 - 480" |
| Stroke - Each Jaw | 36" |
| Tonnage Per Jaw | 50 - 500 Tons |
| Maximum Tension Tonnage | 1,000 Tons |
| Effective Jaw Length (7 segments per jaw) | 100" |

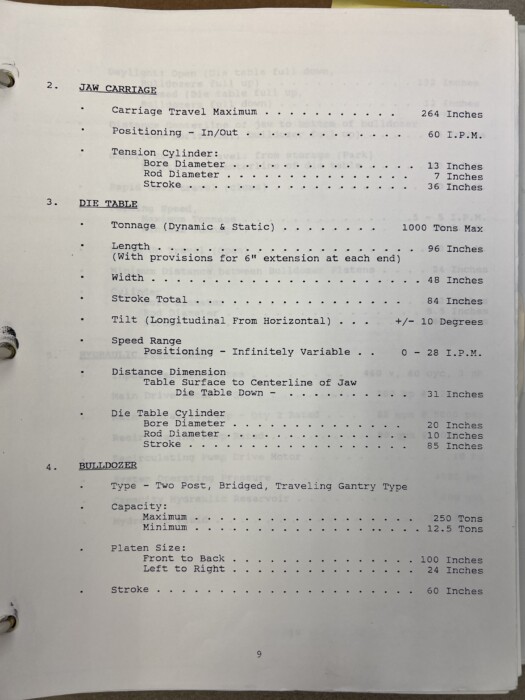

| Jaw Carriage Travel (max) | 264" |
| Die Table Tonnage | 1,000 Tons |
| Die Table Size (6" extension can be added to each end) | 48" x 96" |
| Die Table Stroke | 84" |
| Die Table Tilt (Longitudinal From Horizontal) | +/- 10 Degrees |

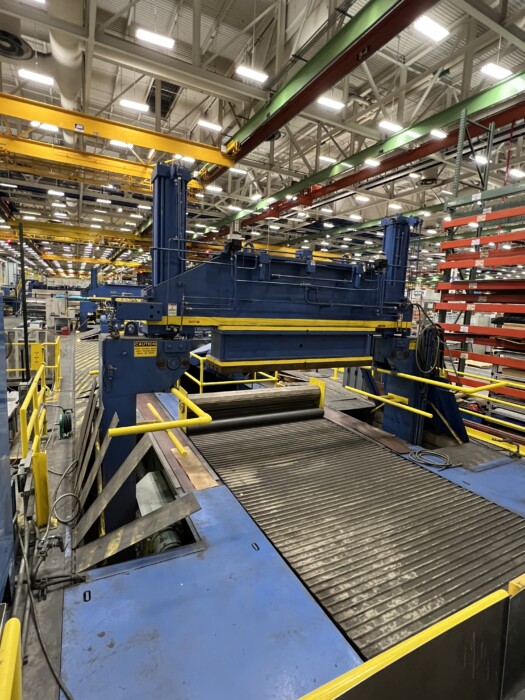

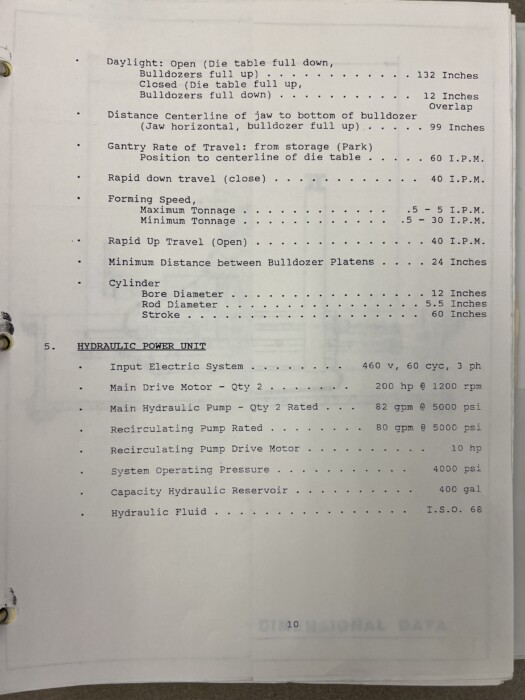

| Bulldozer #1 & #2 Tonnage | 250 Tons Each |
| Bulldozer Platen Size | 24" x 100" Each |
| Bulldozer Stroke | 60" Each |

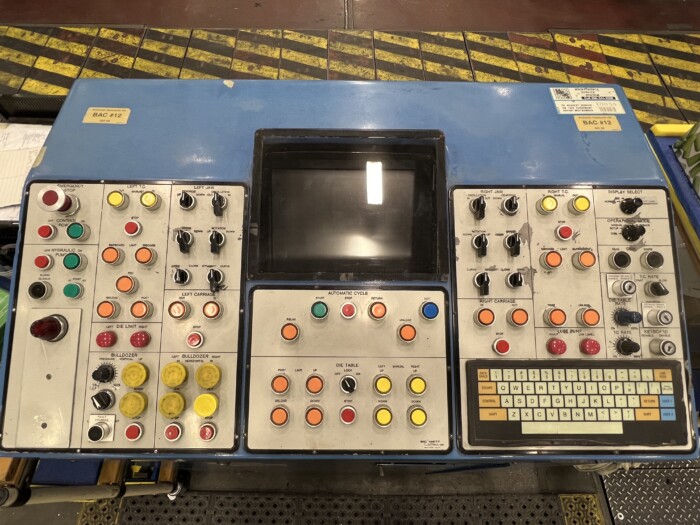

De Mott CNC Control

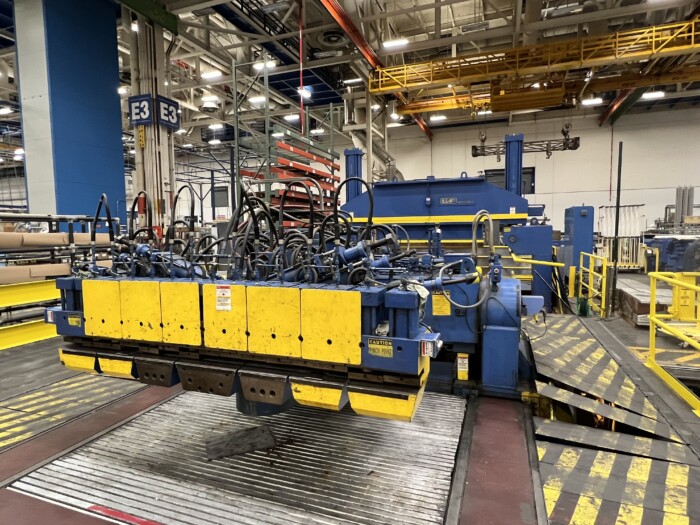

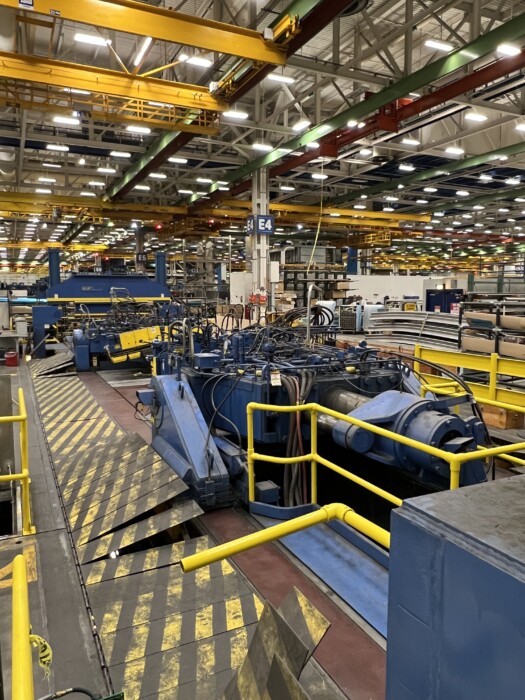

(2) Extrusion Jaws

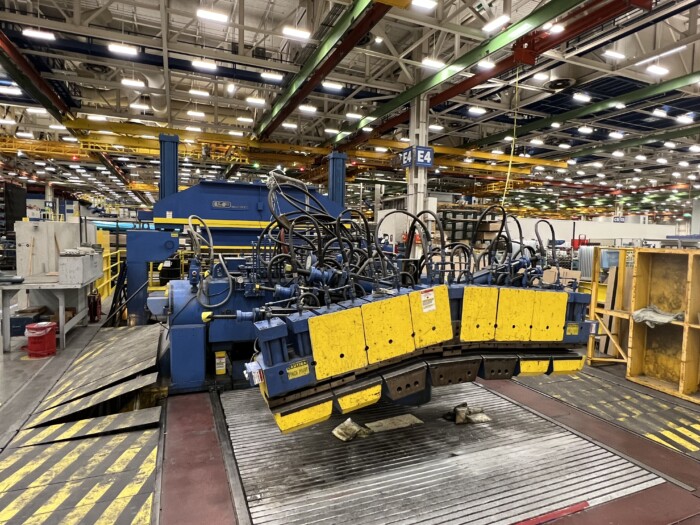

(2) 100″ Sheet Jaws, 500 Tons Each, Hydraulic Actuated, Direct Acting, Adjustable Power Curvature (7 segments)

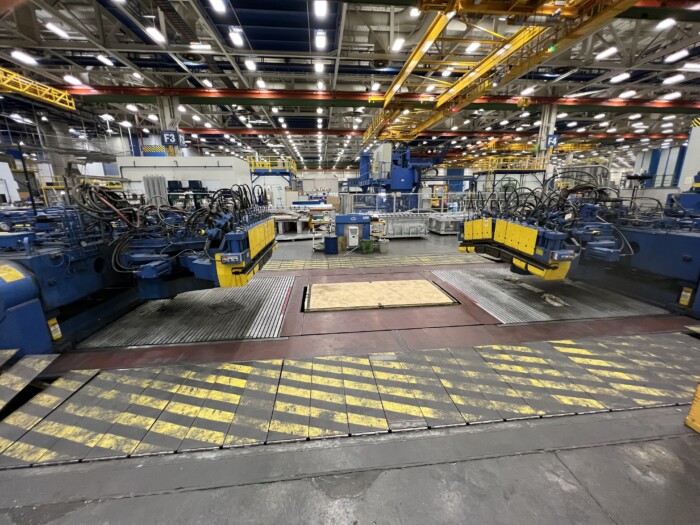

1000 Ton Up-Acting Die Table

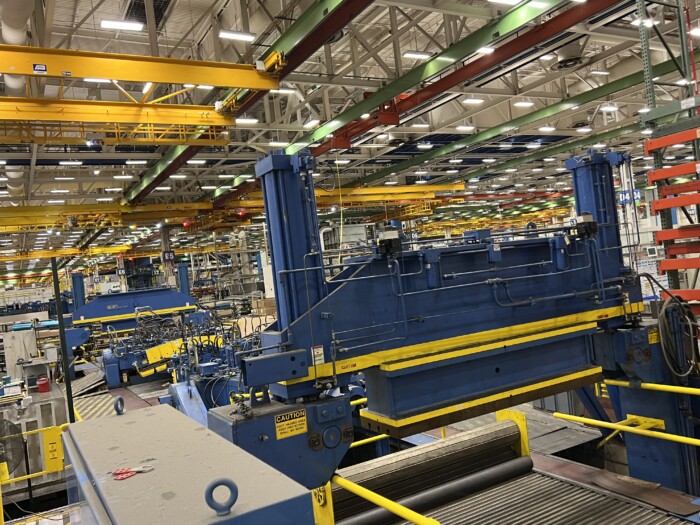

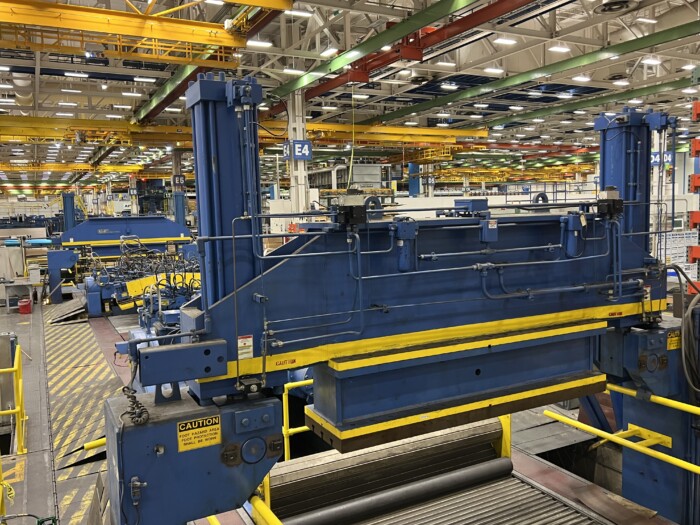

(2) 250 Ton Bulldozers
