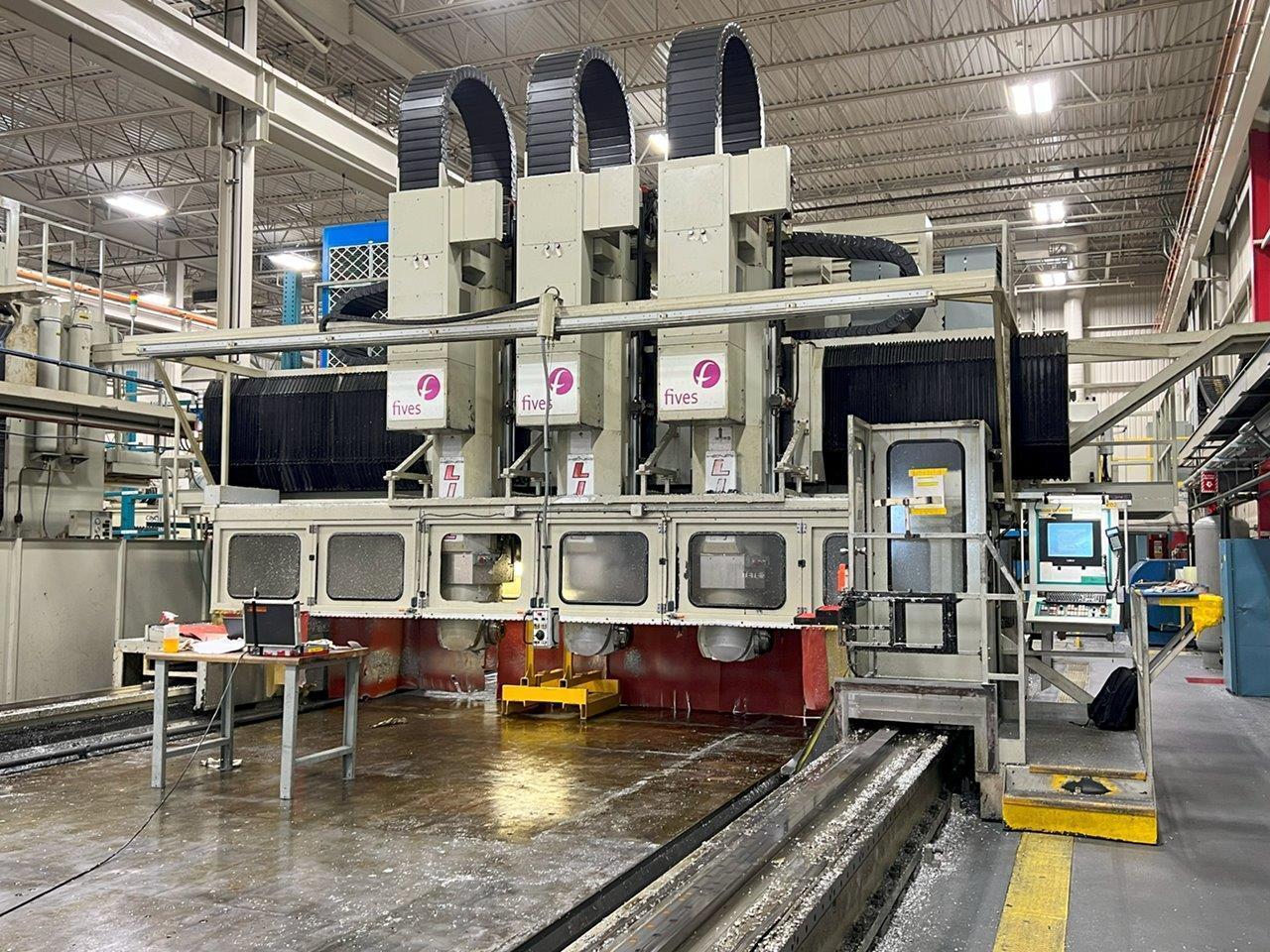

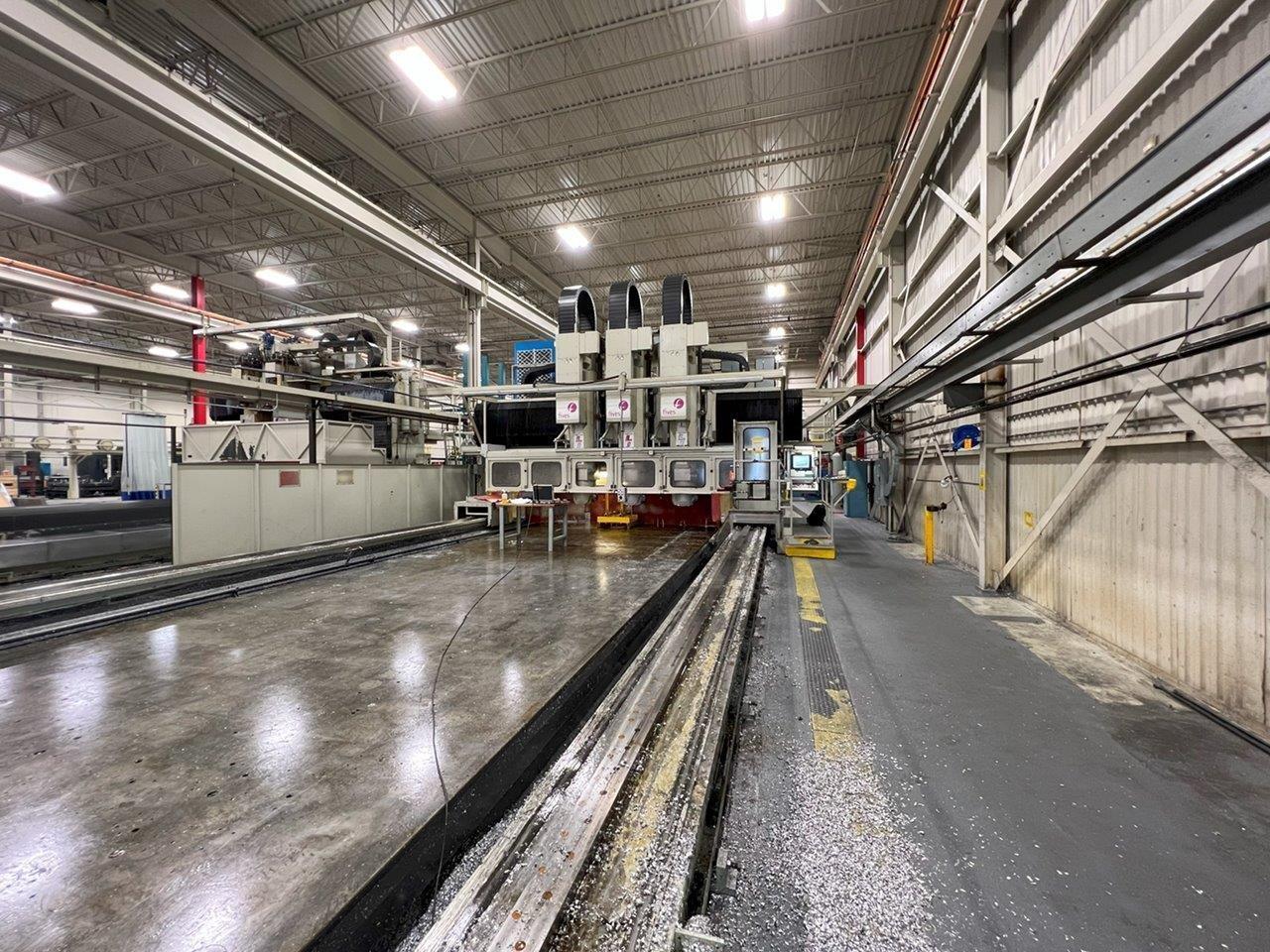

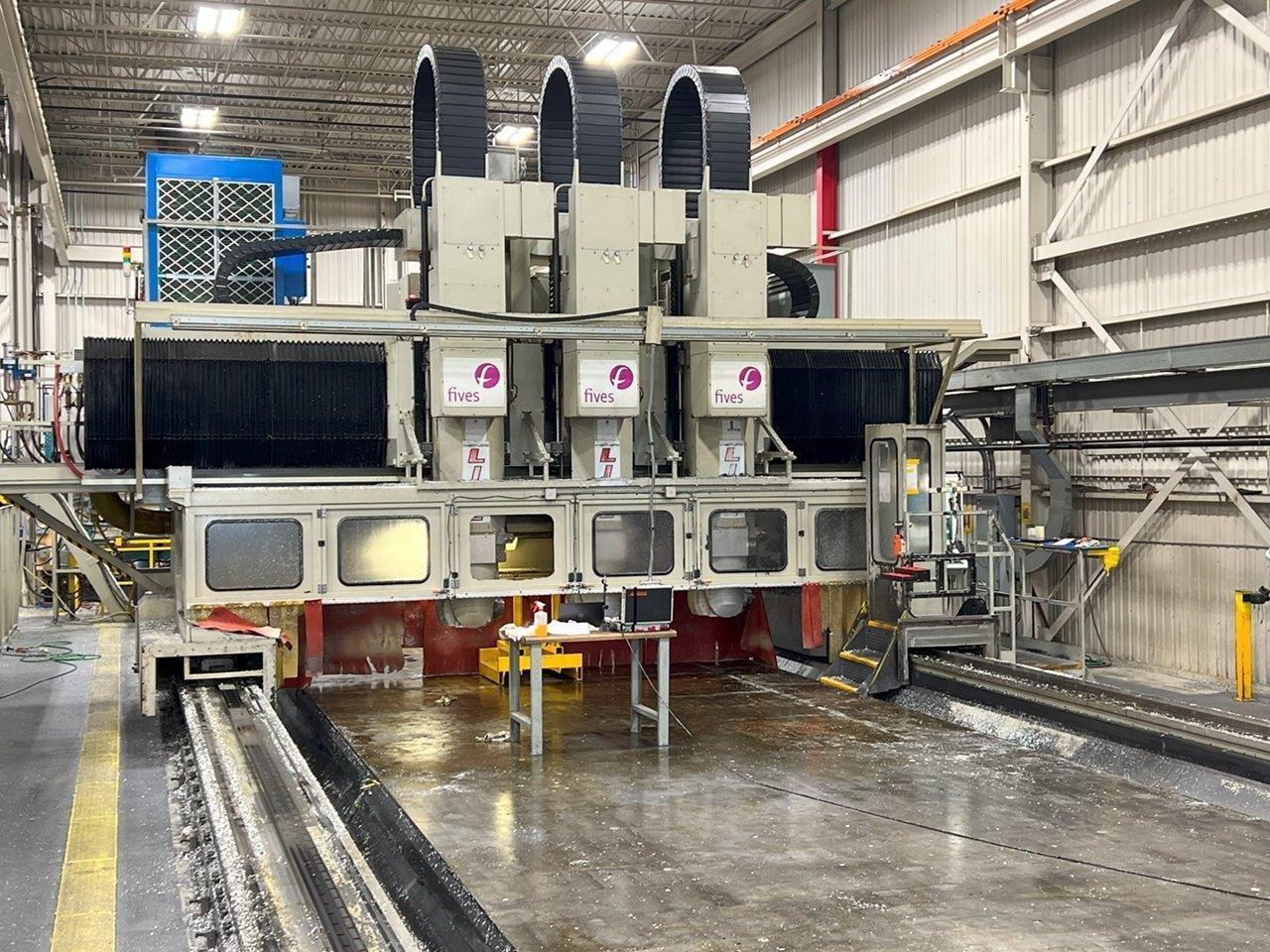

Fives Henri Liné Spindle 3 Spindle 5 Axis Gantry Mill

Brand
Not Specified

Model
Macbormill 260LS/5.3 3

Stock #
60576-SB

Year
2015

Specifications

X Axis 720 inches
Y Axis 104 inches
Z Axis 48 inches
B Axis -110 / +110 deg
C Axis -200 / +200 deg
Power 113 horsepower
Spindle Speed Range 0 - 20,000 RPM
Taper HSK A100
Table-W 186 inches
Table-L 720 inches
Distance Between Columns 238.8 inches
Maximum Distance Under Spindle 47 inches
CNC Control yes
Type of CNC Control Fanuc 15i

Equipped With

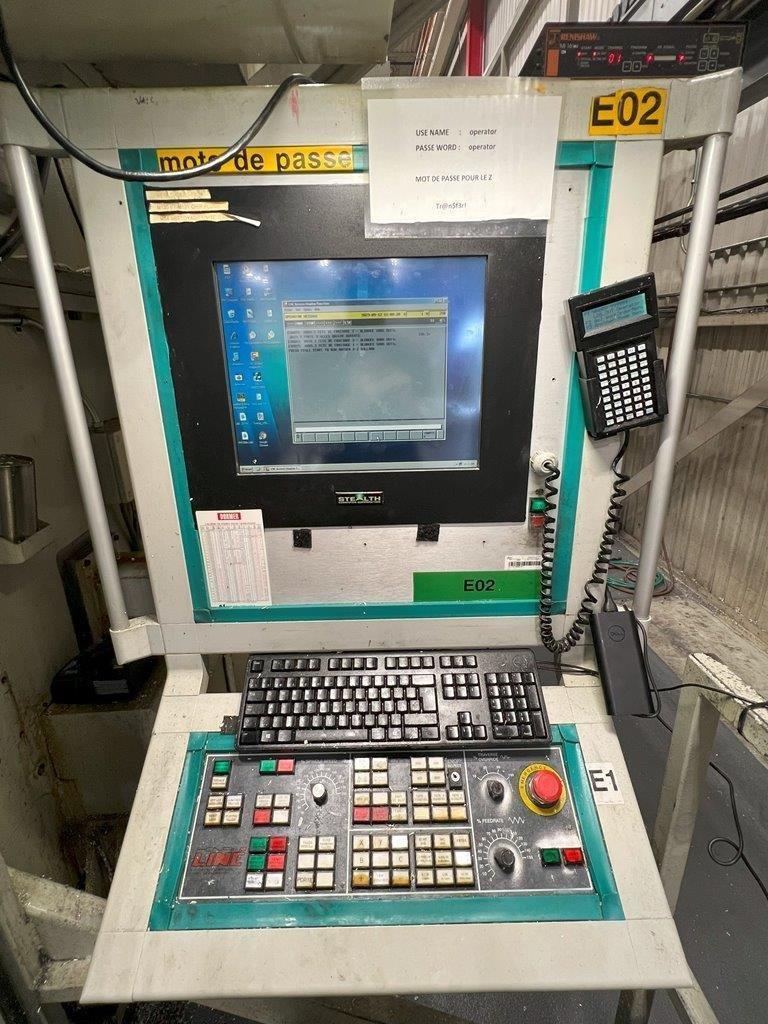

Fanuc 15i CNC Control

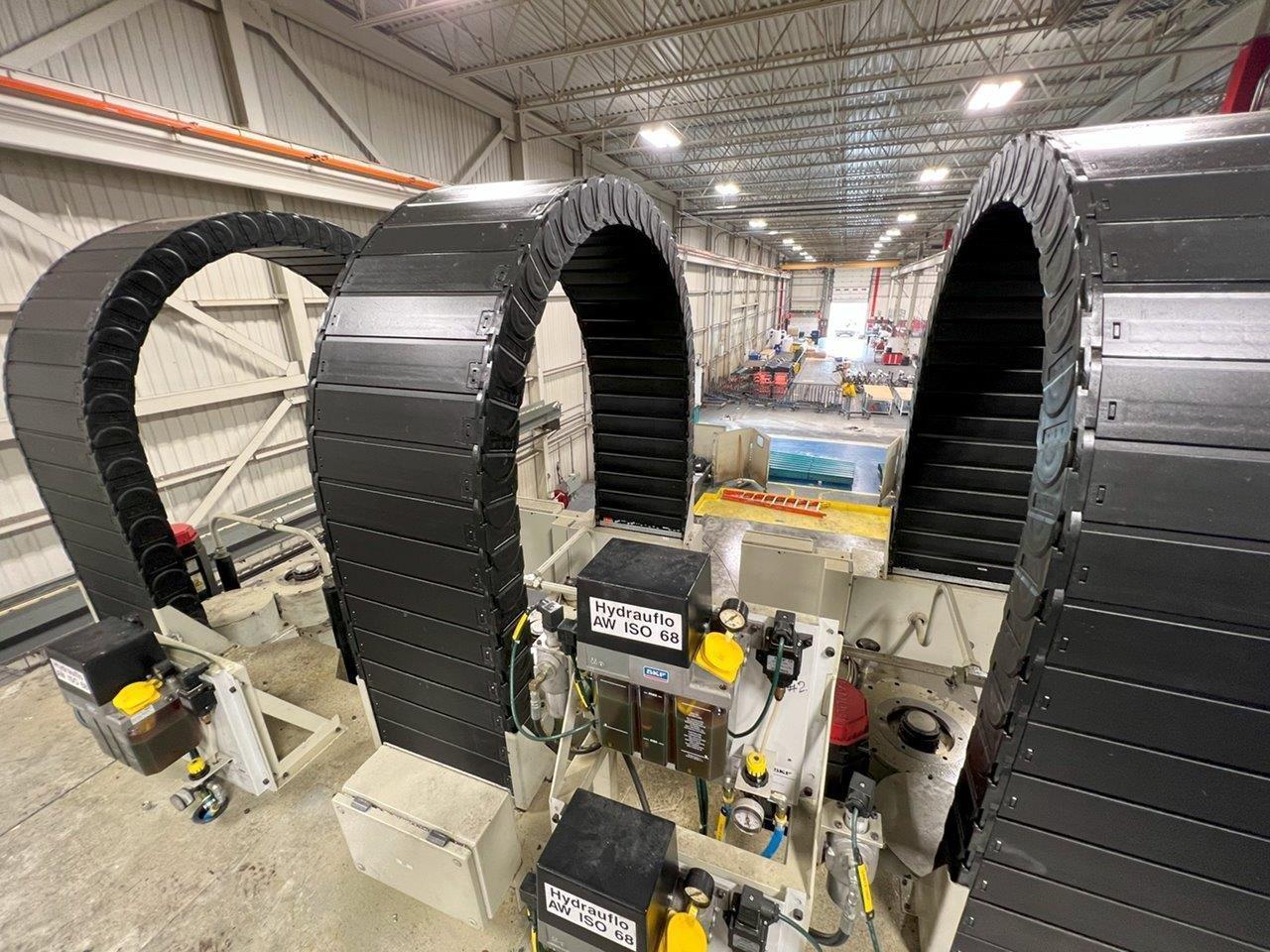

(3) HS 3 Milling Heads w/ Fischer MFWS 2309/20 20,000 RPM / 113 HP Spindle Cartridges  (RETROFIT 2015)

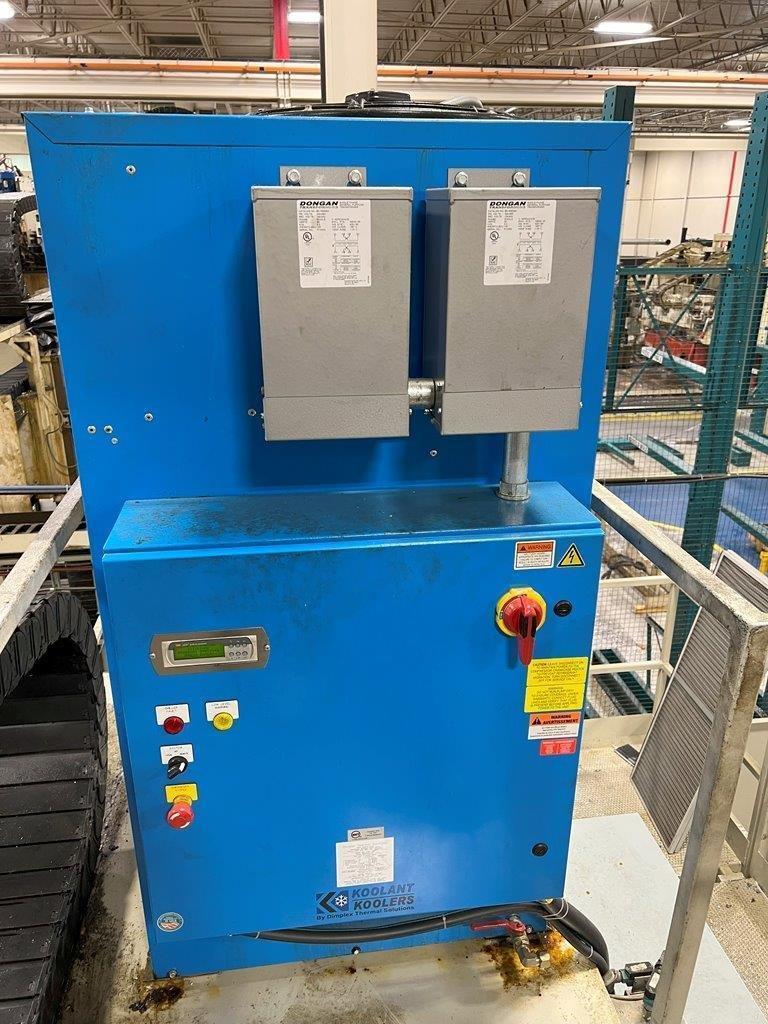

Coolant System
Chip Conveyor
