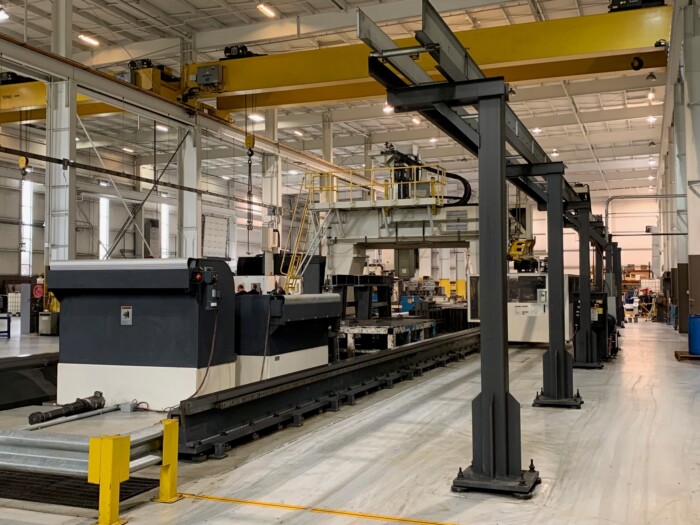

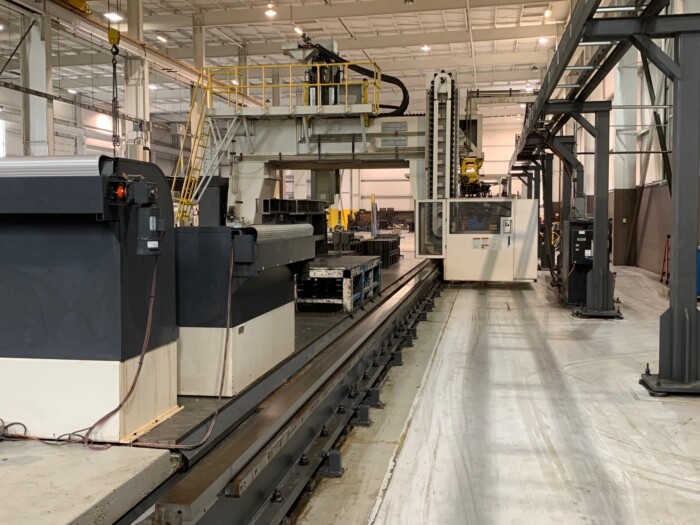

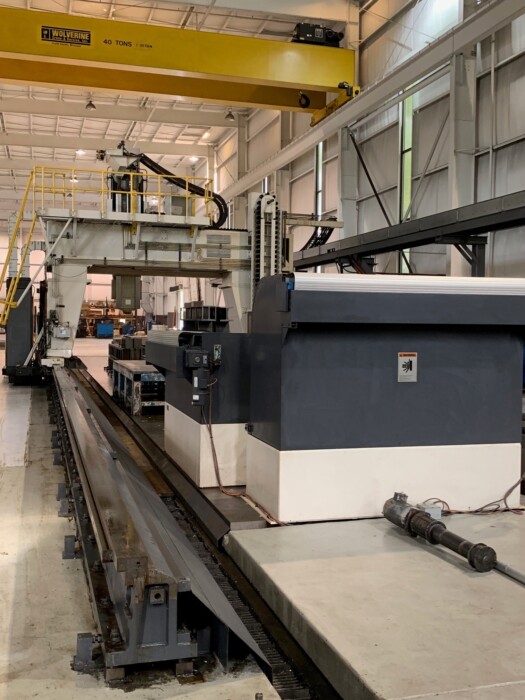

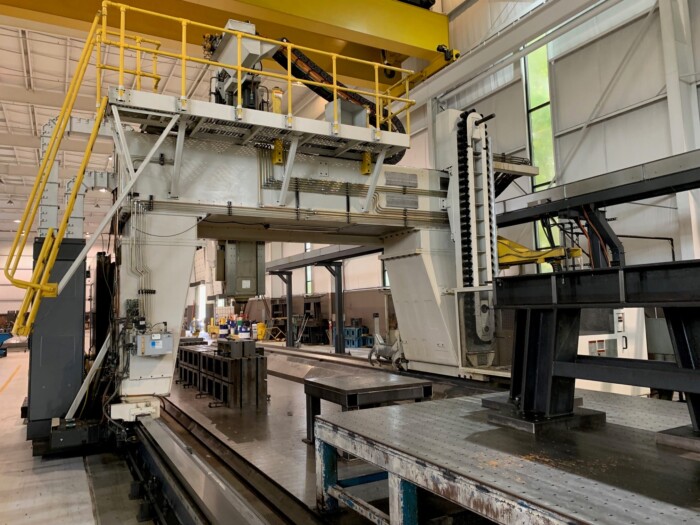

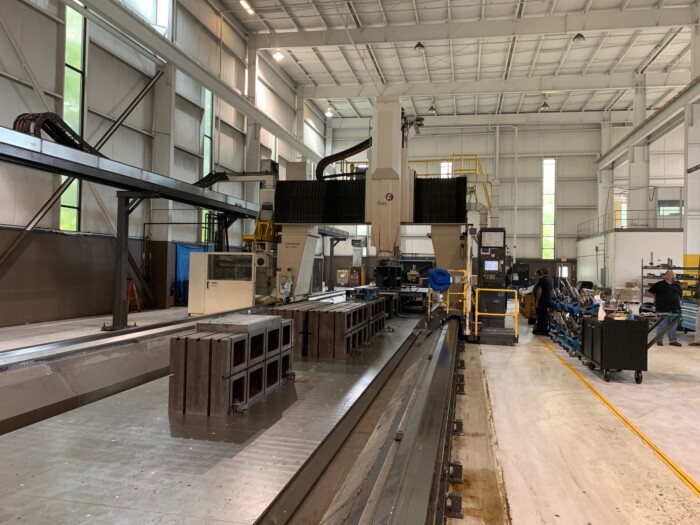

Cincinnati U5 1500 5 Axis CNC Gantry Mill

Brand
FIVES CINCINNATI

Model
U5 1500

Type
Machining Centers, Gantry (incld. Bridge & Double Column)

Stock #
60551-SC

Year
2007

Request a Quote

Specifications

Equipped With

Description

Product: Cincinnati U5 1500 5 Axis CNC Gantry Mill
Model: U5 1500
Stock #: 60551-SC
Serial No.: QD00C01070001
Year: 2007

Specifications:


X Axis Travel	1,178"
Y Axis Travel	144"
Z Axis Travel	60"
A Axis (Gimbal Head)	+100 / -90 deg
C Axis (Gimbal Head)	360 deg (continuous)
Distance Between Columns	199"
Work Plates (Table)	120" x 1,184"
Ram Cross Section	20" x 20"
Spindle Speed Range	to 6,000 RPM
Spindle Motor	40 HP (continuous)
Spindle Taper	CAT 50 / BIG PLUS

Equipped With:

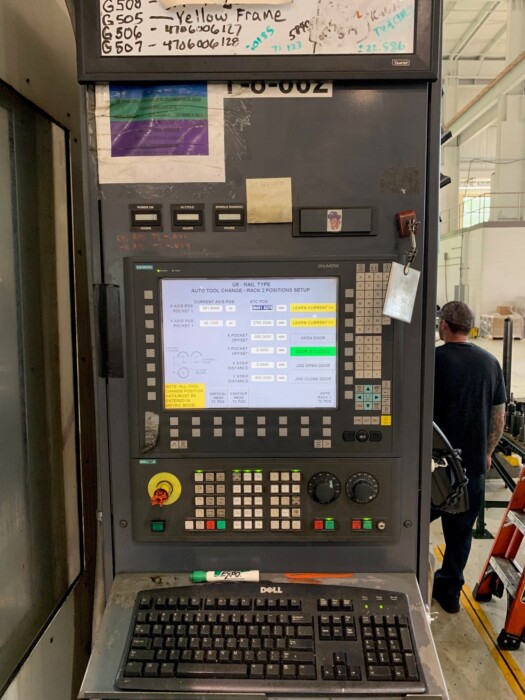

Siemens Sinumerik 840D CNC Control

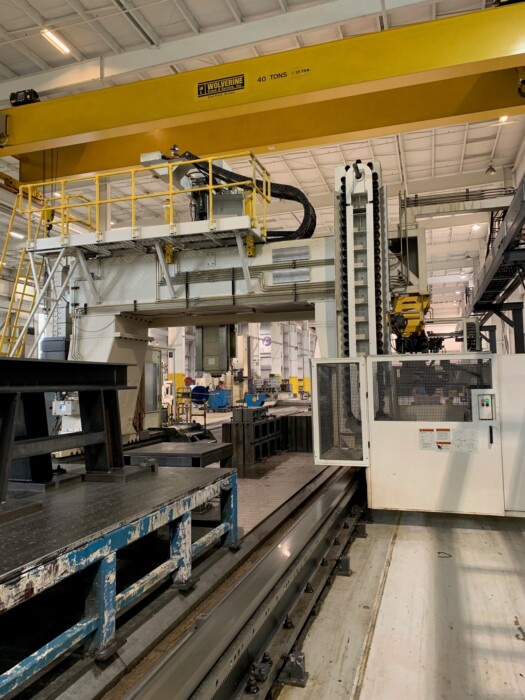

63 Station Automatic Tool Changer

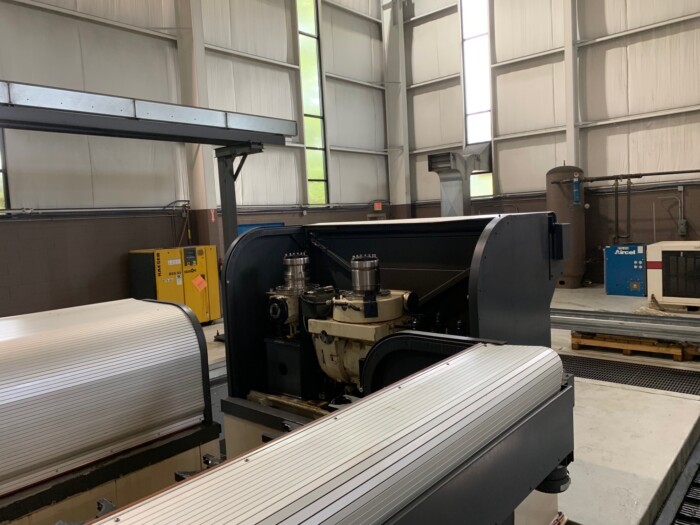

(3) Station Head Stand

(2) 5-Position Wine Racks For Tools

6,000 RPM Vertical Head

6,000 RPM Right Angle Head (1 degree programmable bi-directional rotation)

6,000 RPM 5-Axis Gimbal Head

Coolant & Chip Conveyor System

Thru Spindle Coolant

Flood Coolant

Spindle Probe Capable

Work Plates / Table 120″ x 1,184″ (16 pieces)
